API PORTAL

OPENING THE APP

Run dvt serveand the hub opens on your project's suite port (46100 unless suite_port in dvt_project.yml says otherwise). The API Portal is one of the tiles — the management UI lives at /portal, and the data API it publishes lives at /api/v1 on the same origin:

$ dvt serve
# manage:  http://localhost:46100/portal
# consume: http://localhost:46100/api/v1/models

The URLs you hand out are stable by construction: the port is pinned in dvt_project.ymland nowhere else, and DVT never silently hops to a free port — if something else holds the pin, that's a hard error naming the squatter. Bookmarks, proxy rules and every consumer's code keep working, which is the point.

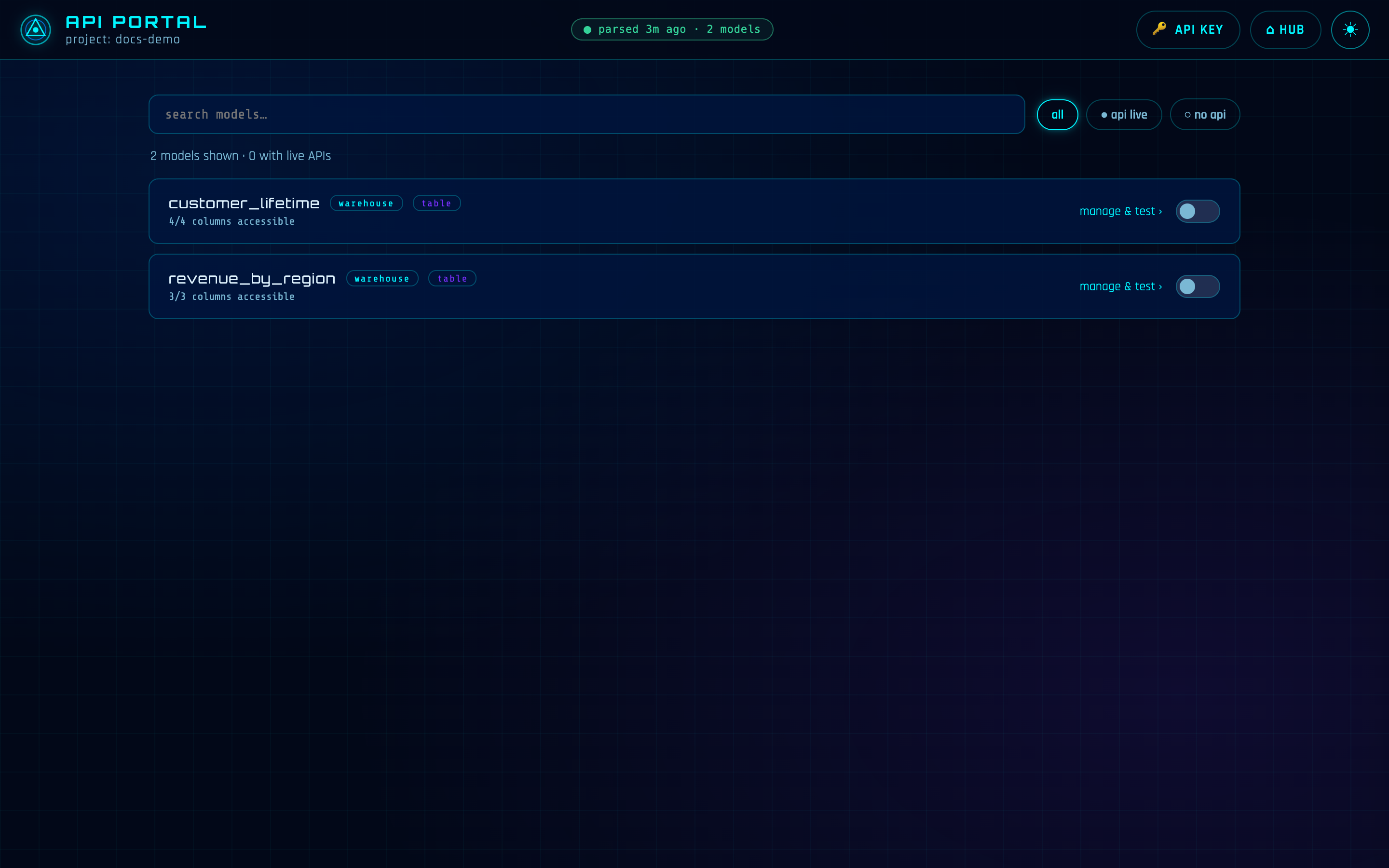

THE MODEL LIST — DENY BY DEFAULT

The portal opens on every model in your project — searchable, filterable by api live / no api — each row showing its target, its materialization, how many of its columns are accessible, and an exposure switch. Nothing is exposed until youflip that switch: a model the portal has never been told about simply isn't an API.

Say your finance team wants order data. Find orders, flip the switch — it now answers at /api/v1/models/orders — then click manage & test to govern what it serves.

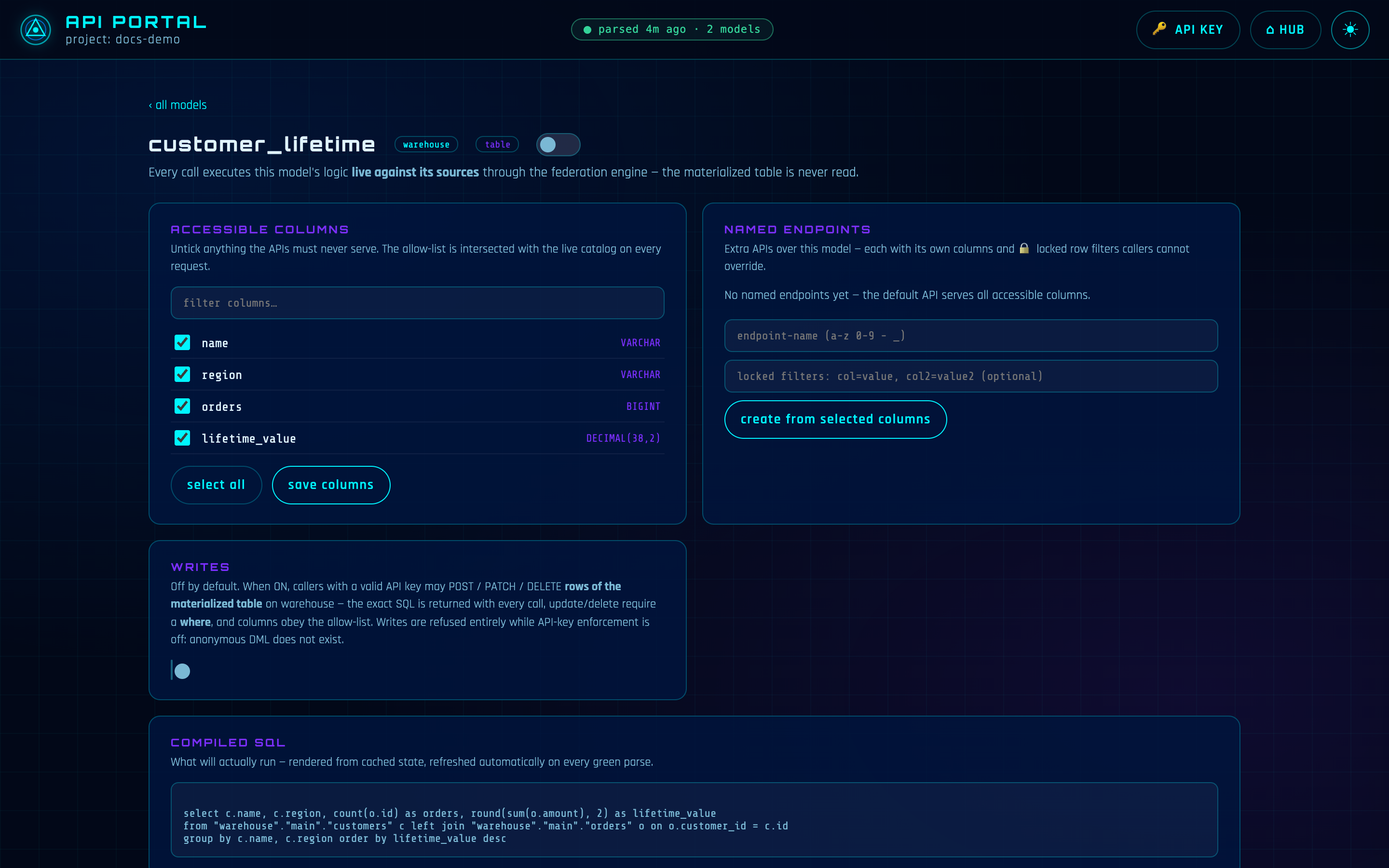

THE MODEL PAGE — COLUMNS, ENDPOINTS, PROOF

A model's page is a set of cards, each one job:

• ACCESSIBLE COLUMNS — every column with a checkbox. Untick anything the APIs must never serve (the customer email, the margin column) and save. The allow-list is intersected with the live catalog on every request, so a stale config can never widen access.
• NAMED ENDPOINTS — extra APIs over the same model, each with its own column list and locked row filters callers can neither see past nor override. Name it, pick columns, type the locked filters (region=EU), create. A locked filter may restrict on a column the endpoint doesn't even expose — row-level security in one move: /api/v1/endpoints/orders-eu serves only EU rows and the region column never leaves the server. Trying to override it is a 400.
• COMPILED SQL— the exact SQL that will run, straight from the project's compiled state. It refreshes itself every time a green parse lands, so what you read is what executes.
• TEST & CONSUME — pick the default API or a named endpoint, grab a ready-made snippet (curl / Python / JavaScript / Java), or hit ▶ run live and watch real rows come back right there in the page before you send anyone the URL.

READING ROWS

Consumers get plain HTTP: list what's exposed, then page through rows with equality filters on any accessible column. Responses carry "virtualized": true — a reminder that these rows were computed from the live sources just now:

$ curl 'localhost:46100/api/v1/models'
$ curl 'localhost:46100/api/v1/models/orders?region=EMEA&limit=100&offset=200'

{
  "model": "orders",
  "virtualized": true,
  "columns": ["id", "region", "amount"],
  "rows": [{"id": 412, "region": "EMEA", "amount": "29.99"}, ...],
  "limit": 100, "offset": 200, "row_count": 100
}

Filters are exact-match equality and must name accessible columns — anything else is a 400, which doubles as the injection guard: identifiers are validated against the catalog and quoted in the executing engine's own dialect, values are escaped literals. limit defaults to 100 and caps at 1000.

THE API KEY

The 🔑 API KEY button in the header generates a bearer token — it starts with dvt_, it's shown exactly once, and only its SHA-256 hash is stored. A separate switch turns enforcement on; the portal refuses to enforce before a key exists. With enforcement on, every /api/v1 call needs the header:

$ curl -H 'Authorization: Bearer dvt_...' localhost:46100/api/v1/models/orders

Enforcement is off by default for localhost development. The management UI itself answers only from the local machine — governing the portal is done at the keyboard, not over the network.

WRITES — A SECOND, DELIBERATE OPT-IN

Reads virtualize; writes are different. Each model's page carries a WRITES card with its own toggle, off by default. Switched on, callers may insert, update and delete rows of the model's materialized table on its target — a write needs a real table, not a live computation. The card shows the exact curl calls the moment you enable it:

# insert — POST with {"values": {...}}
$ curl -X POST localhost:46100/api/v1/models/orders/rows \
    -H 'Authorization: Bearer dvt_...' -H 'Content-Type: application/json' \
    -d '{"values": {"id": 9001, "region": "EMEA", "amount": 12.50}}'

# update — PATCH with {"set": {...}, "where": {...}}
$ curl -X PATCH localhost:46100/api/v1/models/orders/rows \
    -H 'Authorization: Bearer dvt_...' -H 'Content-Type: application/json' \
    -d '{"set": {"region": "APAC"}, "where": {"id": 9001}}'

# delete — DELETE with {"where": {...}}
$ curl -X DELETE localhost:46100/api/v1/models/orders/rows \
    -H 'Authorization: Bearer dvt_...' -H 'Content-Type: application/json' \
    -d '{"where": {"id": 9001}}'

The gate is cumulative — all of it, every time: API-key enforcement ON (writes are refused entirely while it's off — anonymous DML does not exist), a valid bearer, the model enabled, its WRITES toggle on, every column inside the allow-list, and a non-empty where on update and delete — full-table updates and deletes are refused outright.

And the API never hides what it ran: every response returns the exact SQL that executed, the connection it ran on, and the affected-row count — plus a standing note that the next dvt run of the model may rebuild its table. Every write is also appended, SQL included, to the audit log at .dvt/web_apps/api-portal/writes.log.

FROM THE CLI

Two commands feed the portal: dvt compile produces the compiled SQL that every API call executes, and dvt docs generateproduces the column metadata the governance layer checks against — the portal asks for it by name when it's missing. Writes land on the table that dvt run built. Whether a model is materialized as a table, a view or even ephemeral makes no difference to reads — the API serves its logic.
